Description

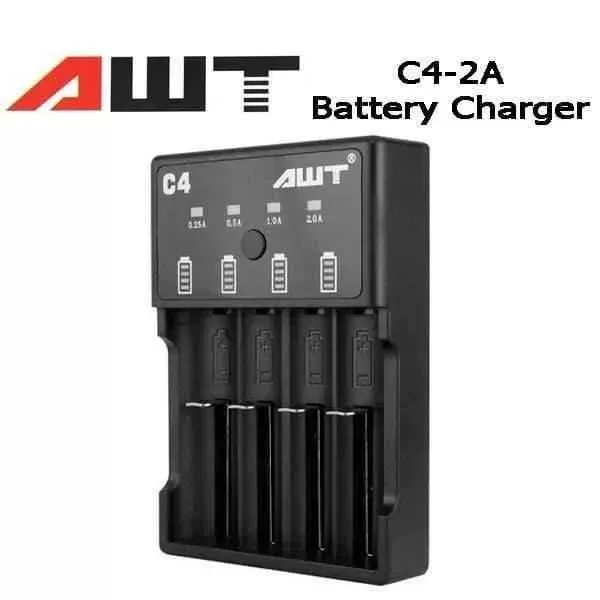

The AWT C4 Charger is equipped to handle a range of battery chemistries, including Li-ion, Ni-MH, and Ni-CD. It automatically detects the battery type and status upon insertion, adjusting the charging mode accordingly. The charger supports four charging currents—0.25A, 0.5A, 1.0A, and 2.0A—allowing users to select the appropriate speed for their needs. Each slot operates independently, ensuring optimal charging for each battery. AWT C4 Charger Features Compatibility: Supports a wide range of battery sizes, including 10440, 10670, 14500, 16340, 18350, 18490, 18500, 18650, and 26650. Charging Modes: Automatically selects between Constant Current (CC), Constant Voltage (CV), and Trickle Charge modes based on battery status. Display: Features a 3-color LED indicator for each slot to show charging progress. Safety Protections: Includes reverse polarity protection and automatically stops charging when complete to prevent overcharging. Build: Constructed with a durable plastic shell designed for optimal heat dissipation. Input/Output: Input: DC 5V Output: 4.2V Dimensions: Approximately 132mm x 78mm x 35mm Weight: Approximately 198g AWT C4 Charger Benefits Versatility: Capable of charging multiple battery types and sizes simultaneously. User-Friendly: Automatic detection and adjustment simplify the charging process. Safety: Built-in protections ensure safe operation during charging sessions. Efficiency: Selectable charging currents allow for faster charging when needed. AWT C4 Charger Usage & Compatibility Battery Types: Compatible with Li-ion, Ni-MH, and Ni-CD rechargeable batteries. Charging Process: Insert the battery into an available slot, ensuring correct polarity. Connect the charger to a power source using the provided USB cable. The charger will automatically detect the battery type and begin charging. Monitor the LED indicators to track charging progress. Once charging is complete, the charger will stop automatically. AWT C4 Charger Included 1 × AWT C4 Charger 1 × USB Charging Cable (100cm)
