DESCRIPTION

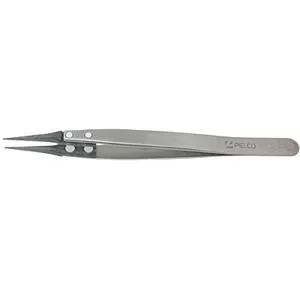

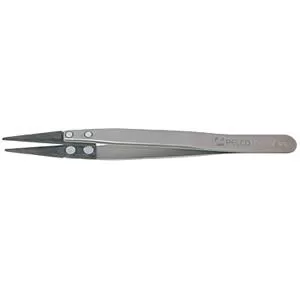

PRODUCT SPECIFICATIONS Electrically conductive, ESD safe tips and non-magnetic SS grips. 25 styles. Sturdy but non-scratching. Outstanding chemical resistance. PELCO® CF, ESD Safe, Polyamide 66, Fixed Tip Tweezers Sharp Points and Flat Tips Soft tips specially designed for the electronics industry to help with easy to mar samples and brittle materials such as Si pieces. These ESD-safe tweezers are made of non-magnetic, acid resistant stainless steel with replaceable carbon fiber reinforced tips. Made in Switzerland. Replacement tip kit includes 1 pair of tips and screws. Prod # Description Style Length Metal Points Width x Thickness 5114 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle
259
130mm
Carbofib
0.6 x 1.0mm 5111
CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle
00
130mm
Carbofib
1.0 x 2.0mm 5112
CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle
5
130mm
Carbofib
0.5 x 0.6mm 5113 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle
5X
127mm
Carbofib
0.5 x 0.6mm PELCO® ESD Safe Plastic Tipped Tweezers PVDF (SV), Polyamide 66 (CF), PEEK (CP) Conductive, synthetic carbon fiber reinforced tips with non-magnetic stainless steel grips. Sturdy and non-scratching. Clean room compatible. Light weight and strong. SV – PVDF (polyvinylidene fluoride) reinforced with carbon fiber. Excellent mechanical strength and toughness
Smooth surface
Heat stabilized, high heat capability, continuous use temperature up to 150°C (302°F)
High purity (clean room and medical devices approved, low extraction value)
Excellent chemical resistance to most aggressive substances and solvents. Resistant to halogens
Outstanding resistance to hydrofluoric acid (40% conc., 90°C, 194°F), nitric acid (50% conc., 90°C, 194°F), hydrochloric acid (36% conc., 90°C, 194°F)
High abrasion resistance
Resistant to UV and nuclear radiation (sterilization)
ESD safe material
Typical applications include handling of very scratch and contamination-sensitive components, cleaning and etching processes CF – Carbofib (Polyamide 66) reinforced with carbon fiber. Heat stabilized
Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
Low friction, self-lubricating properties, excellent wear and abrasion resistance
Good heat capability
Good chemical resistance (oils, grease, fuels, non-polar solvents); not resistant to strong acids, alkalis and hot water or steam
ESD safe material
Very low coefficient of linear thermal expansion
Typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.) CP – PEEK (polyether ether ketone) reinforced with carbon fiber Very hard, rigid, high tensile and flexural strength, very high wear resistance
High heat capability (260-300°C, 500-572°F), good dimension stability, low thermal linear expansion coefficient
Excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing
ESD-safe material
Typical applications include handling of components in cleaning/chemical/assembly processes also at high temperature (soldering)
